C-Arm Movements

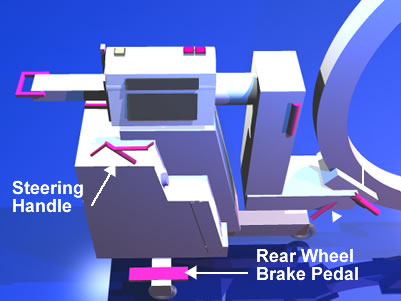

Rear Wheel Brake Pedal: Use this when parking the movement. Setting the pedal parallel to the floor releases the brake. Rotating the brake at +/- 45 degrees locks the brakes.
Steering Handle: The steering handle helps guide the unit in transport. Placing it at a 90 degree angle permits the C-Arm and body to be scanned along the patient axis.
SAFETY REMINDER: ALWAYS RE-APPLY BRAKES AFTER C-ARM MOVEMENT TO REDUCE RISK OF PATIENT AND STAFF INJURY
